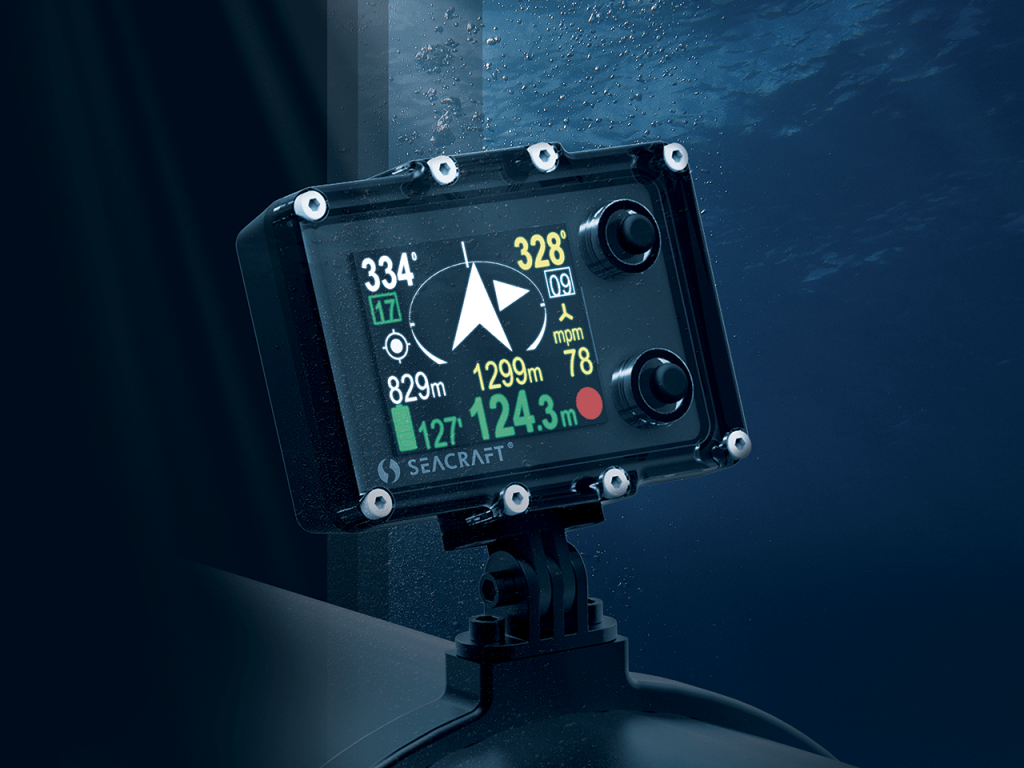

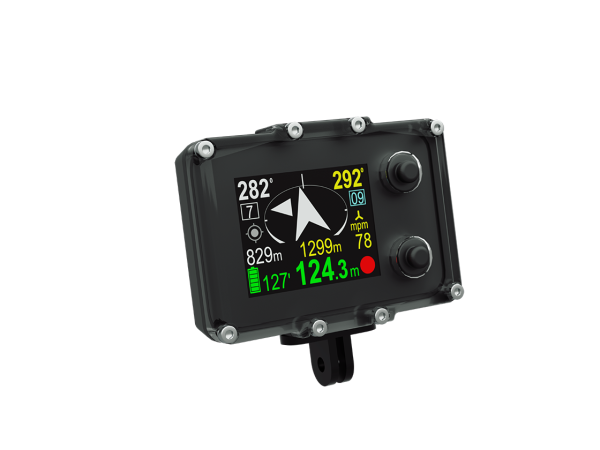

Seacraft ENC3 Navigation Console
Electronic navigation console
ENC3 combines dead-reckoning navigation, route logging, dive data, and precision sensors in a compact console that can be mounted to a DPV or used independently.
Simply and safely to the destination
For years, divers have been traveling the immense depths of waters. Thanks to Seacraft DPVs, they dive deeper and farther, crossing new borders, exploring new caves and finding new wrecks.
Each of us, regardless of whether we dive recreationally, technically or professionally, must reach the destination and then safely return to our base, all while keeping orientation underwater. This is not always easy or obvious, especially with poor visibility, complex tasks, or the high speeds and distances modern DPVs can achieve.
Seacraft products are created by engineers whose diving experience and engineering knowledge allow them to adapt products to the needs of other divers. The ENC3 electronic navigation console is a compact and powerful tool that supports underwater navigation. ENC3-PRO adds multi-waypoint navigation and underwater position adjustment based on a signal from an external GPS receiver.
01 Safety
The device supports underwater navigation
ENC3 allows the diver to set a destination underwater, navigate to it, and return to the entry point while simultaneously logging the track covered underwater. Important points along the route can be marked and saved. Constant awareness of location underwater reduces the stress associated with loss of orientation, especially in poor visibility, and significantly improves diving safety and comfort. The ENC3 is recommended for complex tasks requiring precision and good orientation.
| Maximum depth | 300 m |
|---|---|
| Tested depth | 350 m |
| Working time | 20-35 h, depending on screen brightness |
| Measured time | 0-9,999 min |
| Measured distance | 0-99.9 km |
| Measured speed | 0-199 m/min |
02 Live data
Critical information in the diver's field of view
- Distance and compass course to the selected destination
- Current underwater speed and depth
- Estimated arrival time
- Total traveled distance and elapsed time
- Distance and direction back to the starting point
- Time and water temperature
03 Additional functions
Review the dive after surfacing
The console records the entire route, including distance and changes of direction; records the depth profile; records the location of important route points; allows data transfer to a computer; allows its functions to be configured; and can be expanded through software updates.
| Routes recorded | 50 on ENC3; 50 on ENC3-PRO |
|---|---|
| Markers / waypoints | 99 on ENC3; 29 on ENC3-PRO |
04 Orientation
Basic dive information at a glance
The navigation console informs the diver about current diving depth, current direction of movement, dive time, clock time, and water temperature.
05 Construction
Compact, depth-rated aluminum housing

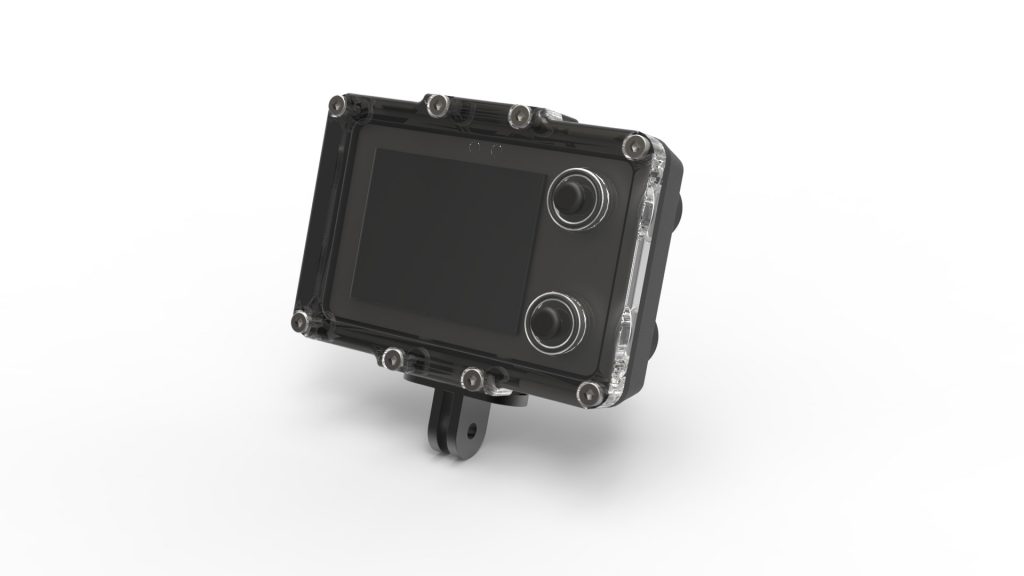

Like other Seacraft products, the ENC3 is a sophisticated professional-grade device. Its construction is precisely made from a special aluminum alloy. The housing is resistant to depth and impact and has been tested to 350 m. A dedicated holder is available for Seacraft DPVs, accessories support DPVs from other manufacturers, and the ENC3 can also be used without a DPV.
| Size | 95 x 71 x 31 mm |
|---|---|
| Weight | 290 g |
| Displacement (buoyancy) | -90 g |
| Charging time | Less than 2 h |
| Working temperature | -10 to +45 C |
06 Precise sensors
Integrated motion and environmental sensing
The ENC3 contains a 3D magnetometer, 3D gyroscope, 3D accelerometer, pressure sensor, temperature sensor, GPS module supporting GPS, GLONASS and Beidou, automatic or manual display-brightness adjustment, a 2.4-inch TFT display with 320 cd/m2 brightness, and a built-in 3.7 V / 5 Wh lithium-ion battery. Versions with speed and distance measurement are supplied with a dedicated external speed sensor.
Choose the correct configuration
Use the Configuration selector above for the console by itself or a mounting package for GO!, FUTURE, GHOST, or another DPV. ENC3-PRO is available separately for multi-waypoint navigation and GPS position correction.
